Description
Grolta F3 Series Features:
- Constructed of metal such as brass and stainless steel
- Covered under Grolta's limited lifetime warranty
- Premier finishing process - finishes will resist rusting and corrosion through every day use
- backflow for on-off volume adjustment from zero to Full Flow
- Triple function valve with trim and knob
- Thermostatic valve cartridge with scald guard
- Secure mounting assembly
- Three push buttons and single knob handle
- Rough-in valve included - heavy-duty brass material
- High quality level temperature cartridge - it requires strictly hot water pipeline at left side and cold water pipeline at right side
- Whole unit shower system
- Water flow: 0~4.8 GPM at 60PSI
- Recommended water pressure: 50~90PSI
- Finishing: Brushed nickel
- All threads size: NPT 1/2 inch US standard
-
UPC Approvals: International symbol for design innovation. Approvals to products that have separated themselves in quality, durability, functionality, and emotional connection to the customer may receive this approvals as a mark of their achievement.
-
Grolta Technology: The highly innovative Grolta technology reduces water consumption by up to 50% without compromising on performance.
Grolta offers a made-to-last finish. The flawless, long-lasting surface is designed to be extremely resistant to dirt and scratches, making maintenance effortless and ensuring good-as-new looks for many years.
By increasing the sensitivity to the thermo element and restructuring the internal waterways, our thermostats react up to twice as fast to abrupt changes in water pressure, and are up to six times more accurate than the leading competitors. The desired temperature is achieved in seconds and is maintained throughout the duration of your shower. The outstanding precision offered by the Grolta technology also adds to your showers conservation of water.
-
SafeStop: SafeStop is a safety feature for you to set the max temperature at 100°F/38°C
- Applicable Codes & Standards: • ASME A112.18.1-2018/CSA B125.1-18
- Grolta F3 series Specifications
Valve Trim Width: 5-1/8"
Valve Trim Height: 8-1/16"
Recommended wall depth of valve body: 2-⅝’’ ~ 3’’
Characteristics and Features
- Top rain head size available: 12’’ x 12’’ or 16’’ x 16’’

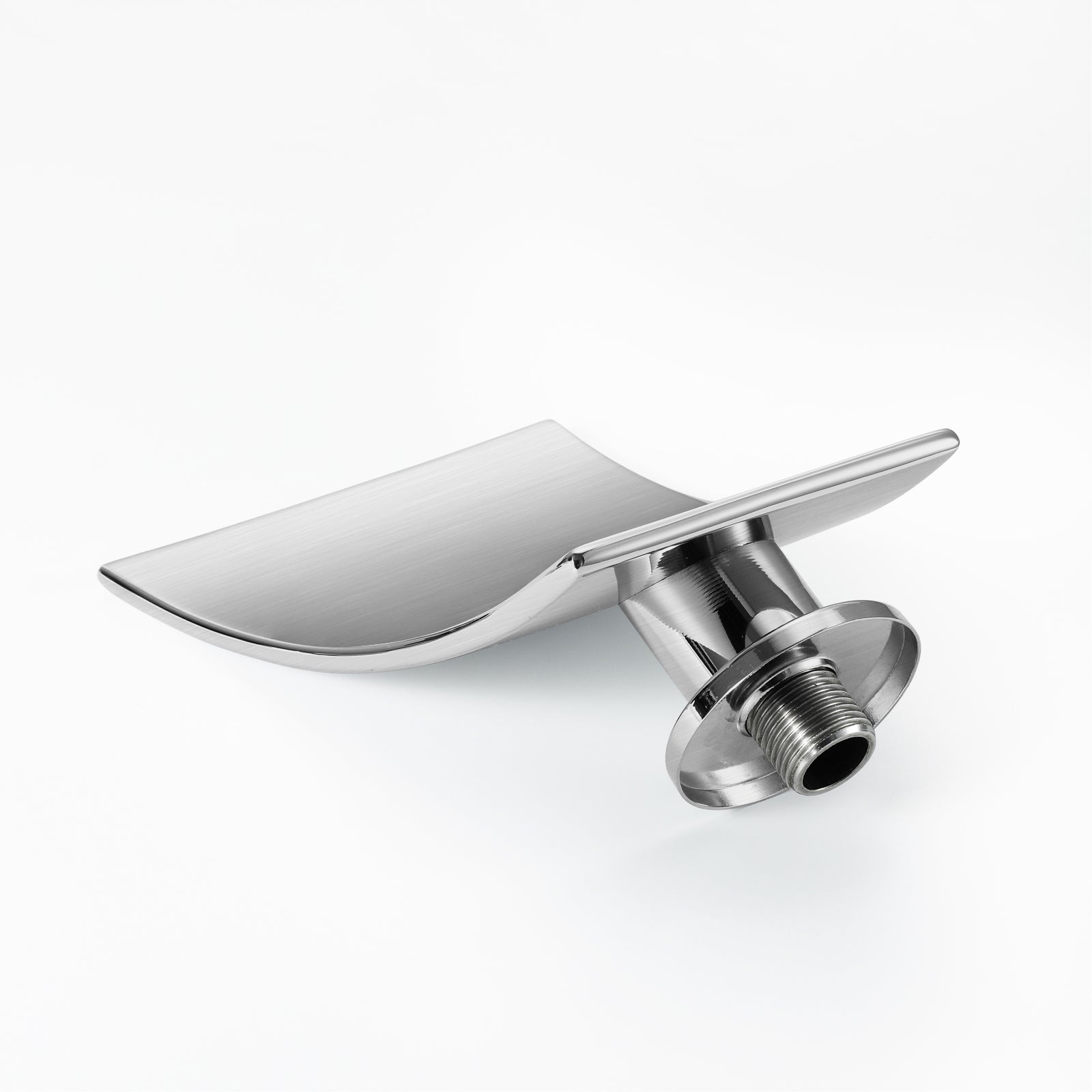

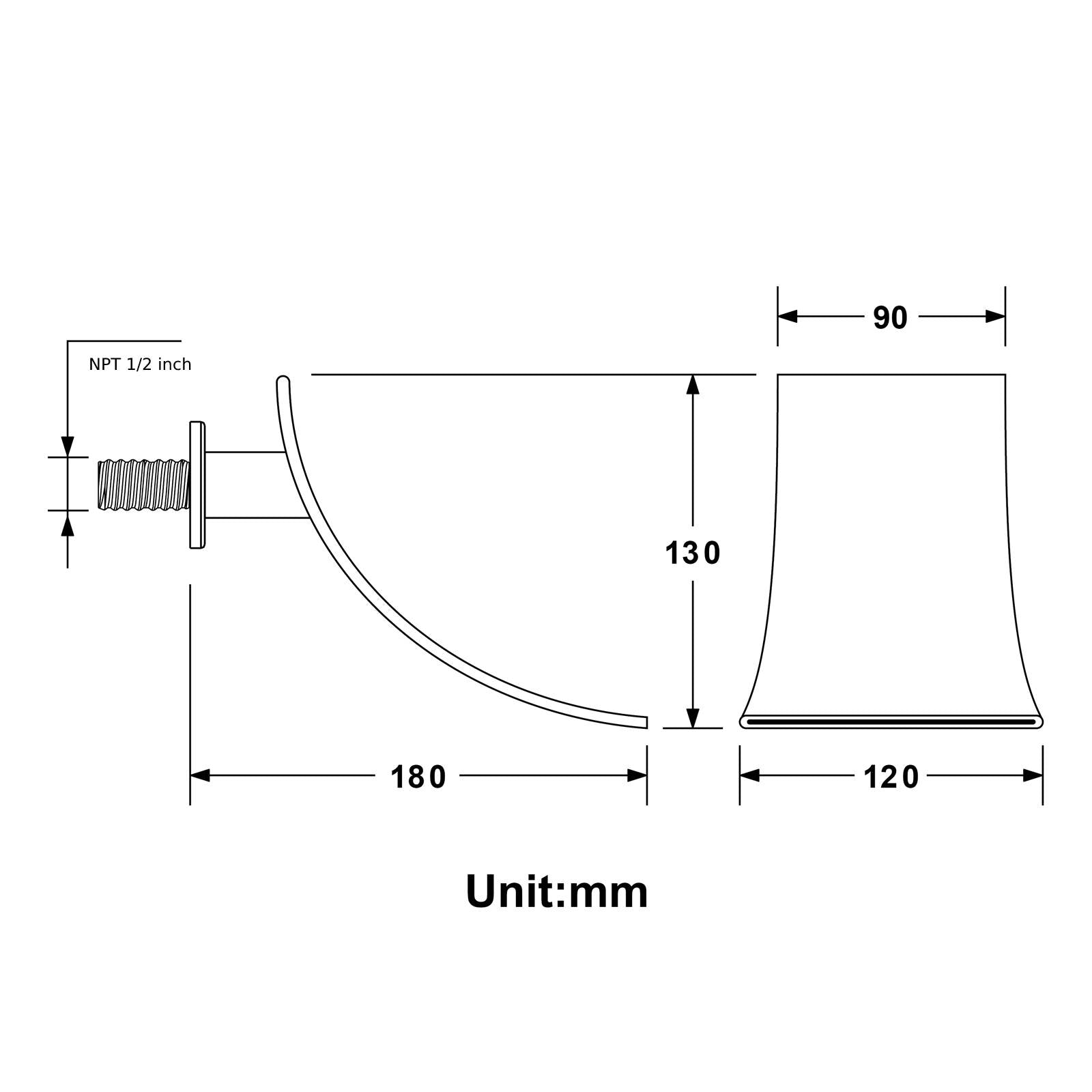

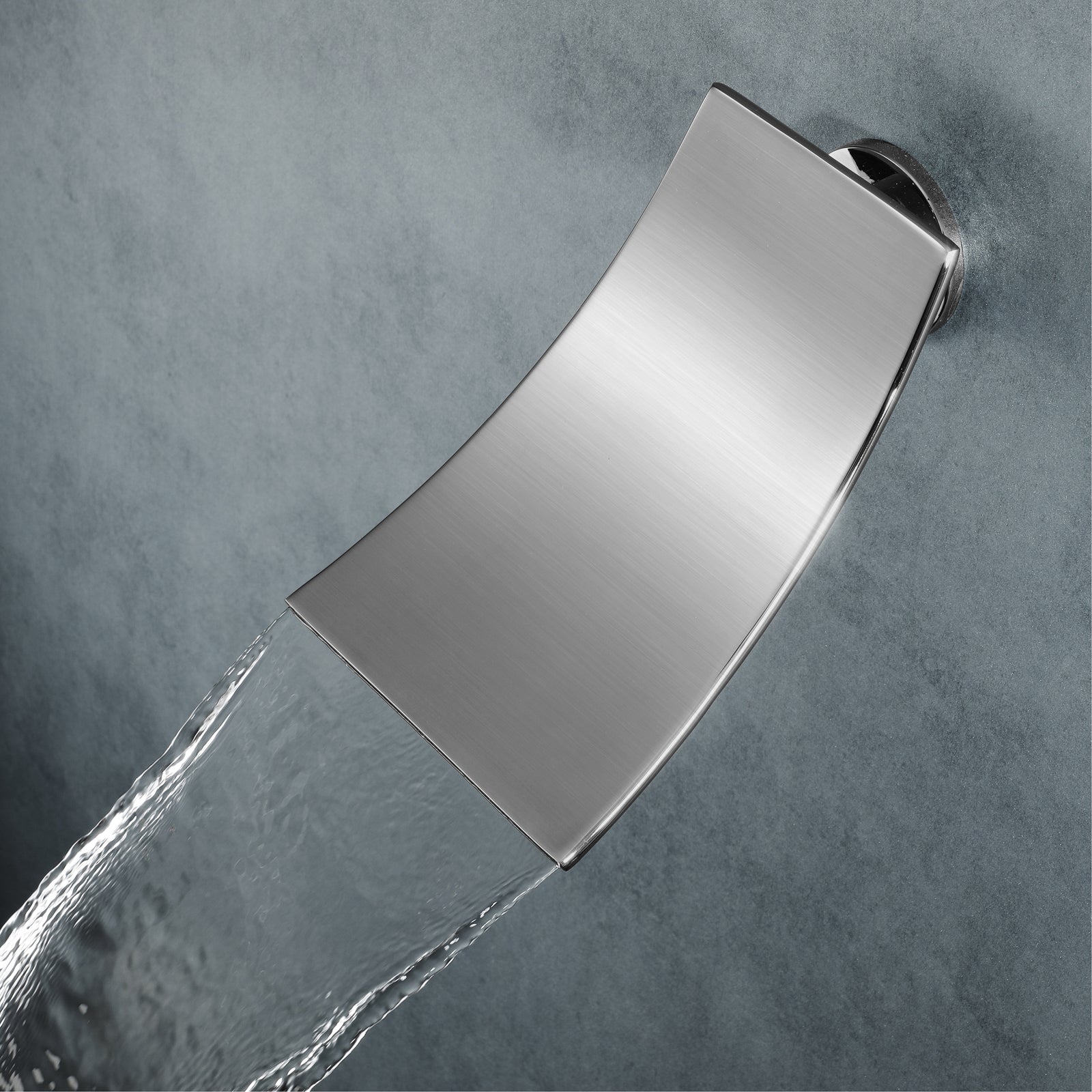

- Tub spout: waterfall,
- Handle style: knob, push button
- Valve type: Thermostatic
- Triple function valve with trim
- Thermostatic valve cartridge with scald guard
- Secure stop limit: anti-scald
- Finishing: Brushed nickel
- shower hose: 59 inch
- All Threads size: NPT 1/2 inch
- LED rain head work by water flow, no need battery, 3 LED lights colors change by different water temperature.

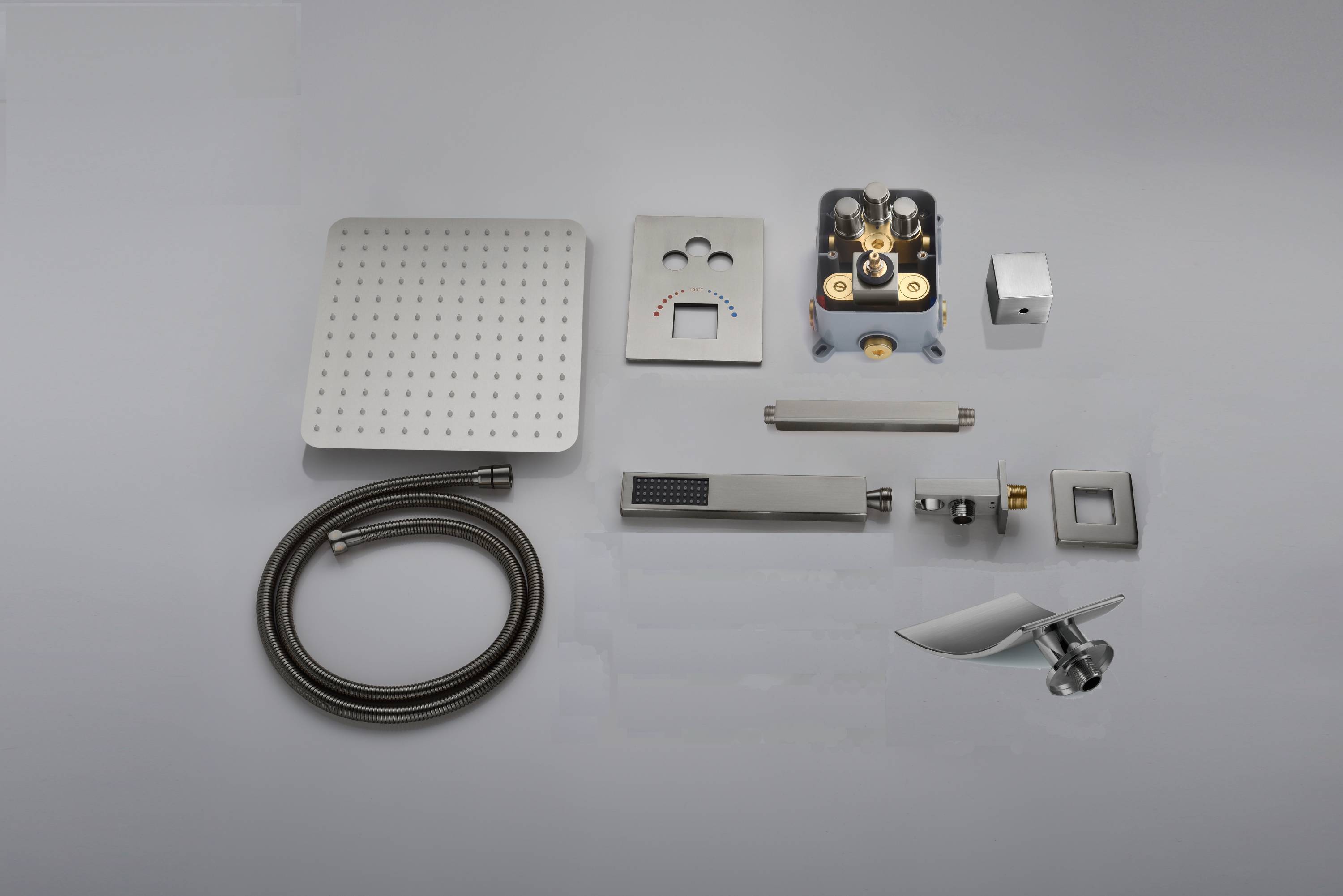

Included Components:
- Top rain head: stainless steel material
- Tub spout: stainless material
- Ceiling shower arm: brass material, 9 inch length, with NPT ½ inch male thread and G ½ inch male thread and flange
- Shower holder : brass material
- Thermostatic valve with trim and square knob
- Shower hose and handle shower: stainless steel material
- Instruction
